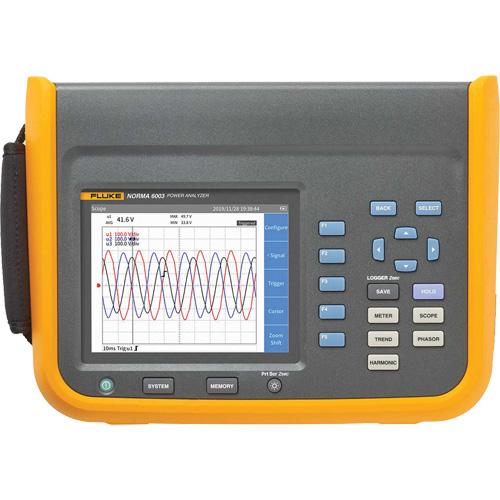

Norma 6003+ 3-Channel Portable Power Analyzer with Speed & Torque – Digital, 3, Power Analyzer; Test Leads – (3) Red, (3) Black, (6) Blue; Alligator Clips – (3) Red, (3) Black, (6) Blue; USB (Mini B) Cable; RS-485/Synchrony Adapter; Speed/Torque Adapter; Soft Carrying Case; Power Supply Adapter; Power Cord; USB Flash Drive for PC SW and User Manual

Description

• Designed for portability, the lightweight, battery-powered analyzer eliminates the need to carry large, fragile, expensive analyzers into the field
• By measuring directly at the load, you can discover how the equipment operates under real-world conditions, with real-world variables
• Features the capability to measure mechanical parameters such as speed and torque
• Key measurements: Voltage, current, active power, reactive power, apparent power, power factor, and harmonics with associated values
• High accuracy and wide bandwidth – 0.1% measurement accuracy and 500 kHz bandwidth
• Highly portable and easily installed in tight spaces – only 3.78" (9.6 cm) thick
• Operate continuously for up to 10 hours without an external power supply using the 5000 mAh Li-ion internal battery
• Measure safely – safety rated for CAT III 1000V, CAT IV 600 V environments
• Measure three phase power and DC output power at the same time with three channels, with voltage and current inputs on each channel
• Make mechanical torque and speed measurements using the included inputs and outputs
• 0.1% accuracy, 500 kHz bandwidth, 200 ks/s sample rate so you can rely on the power conversion system measurements you take no matter what distortion may be present
• USB and RS485 interface and open communication protocol for easy system integration and software platform flexibility
• Combine two analyzers to enable simultaneous measurement of multiple circuits for even more troubleshooting capability – configurable to 6 or 8 channels using dual analyzer synchronization
• View critical data in the field on the main display – Meter, Waveform, Harmonics up to the 100th, Vector and Trend
• Ensure high common-mode rejection and allow flexible configurations according to measurement requirements using the electrically isolated channels
• User adjustable measurement rate from 100 ms to 1 s with continuous logging via 32GB of onboard storage
• Easy in-field set up using the integrated front panel or a remote PC connection (USB or RS485)
• Online measuring, data download and analysis with included PC software (Fluke Power Analyzer Software)
• Full remote control of the connected instrument using Fluke Power Analyzer Software and a local USB or long-distance RS485 connection
