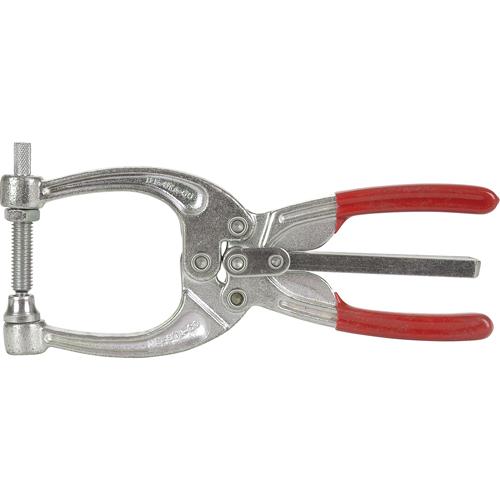

Plier Hold-Down Clamps – 424 Series – 200 lbs., 1, 1.125, 4.5″, 1/4 x 20

SKU 010-LWQ320 Category Brand:

$84.95 / Each

Available on backorder

Available on backorder

Description

  • Quick action pliers offer excellent workholding capacity, they are portable to many applications and highly versatile. Only normal hand pressure is required to close and lock clamps in place. Clamp thickness may be adjusted by turning the threaded spindle. Once set, the clamp can be used repeatedly at that opening. Standard style clamps open by pulling handles apart. Trigger release style pull the two-way release (up and down) for easy one-handed release. Has a single 1/4-20 adjustable neoprene-tipped spindle assembly. Clamp opens by manually pulling handles apart.

Additional information

Weight 4.53592 kg
Dimensions 21.336 × 16.764000000000003 × 15.24 cm
Manufacturer Model

424

Clamping Force

200 lbs.

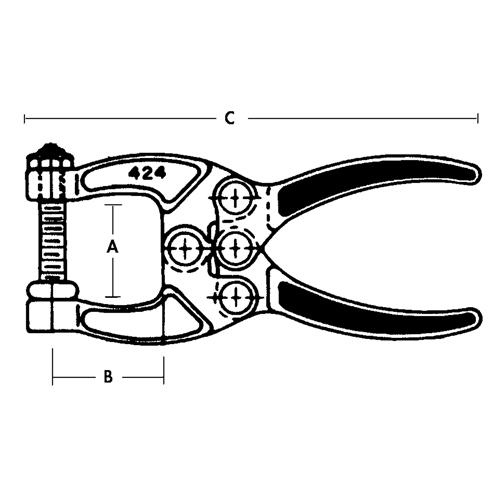

Clamping Thickness (A)

1

Throat Depth (B)

1.125

Overall Length (C)

4.5"

Spindle Thread

1/4 x 20
