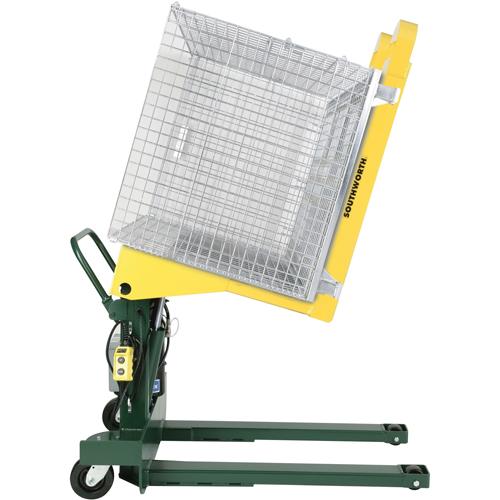

Portable Hydraulic E-Z Reach Tilter – 40″, 4000 lbs., 85°, 37″, 3.5″, 31″, 40″ L x 25-1/2″ W, 85, 36″

SKU 010-LOW812 Category Container Tilters Brand: Southworth

$17,521.35 / Each

Available on backorder

Available on backorder

Description
Additional information

Description

Collapsible pushbar
1.0 HP TENV electric motor and 0.85 GPM hydraulic pump
NEMA 4 hand held pushbutton includes a 10ft straight cord
Parts & labor are warrantied for 2 years
Green self-priming machinery enamel with tilting platform painted yellow
Control Voltage: 115/1/60
Floor Lock Included: Yes
Primary Voltage: 115/1/60
Rear Caster Size: 6"
Tilt Time Down (seconds): 15
Tilt Time Up (seconds): 20
Weight: 850 lbs.

Additional information

Weight	391.903488 kg
Dimensions	91.44 × 152.4 × 86.25840000000001 cm
Manufacturer Model	4432542
Dimensions	40" L x 25-1/2" W
Fork Length	40"
Capacity	4000 lbs.
Degree of Tilt	85°
Raised Height	37"
Lowered Height	3.5"
Handle Height	31"
Platform Dimensions	40" L x 25-1/2" W
Tilt Degree	85
Overall Height	36"
