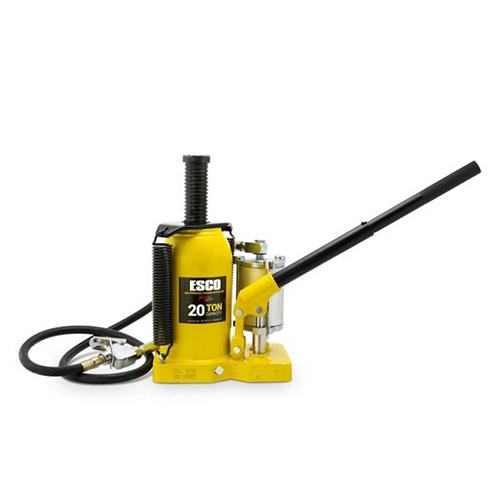

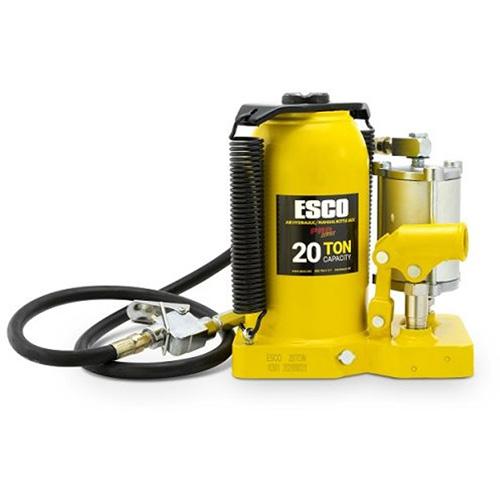

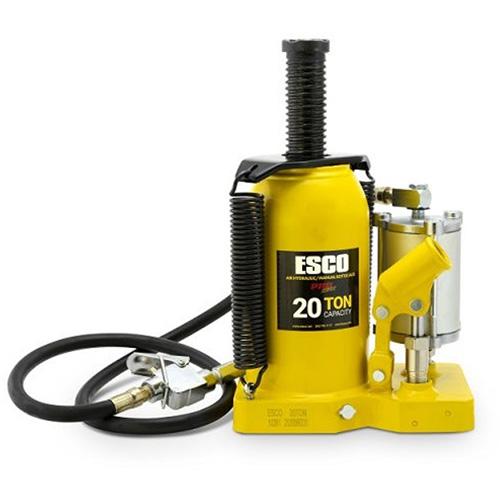

Pro Series Bottle Jack – 20 Ton(s), 10″, 20″, Air Hydraulic, 6″, 4″, 1-3/4″, 1-1/4″

SKU 010-LIOX861 Category Brand:

$572.25 / Each

1 in stock (can be backordered)

1 in stock (can be backordered)

Description

  • Fully welded cylinder and frame provide superior strength and extended service life
  • Extra thick jack base provides exceptional support and stability in severe conditions
  • The compact design makes these jacks great for multiple applications including Commercial Truck, Bus, Tractor & Farm Equipment, and much more
  • Chrome-plated piston for extra rust and corrosion resistance
  • Fitted with a safety valve to prevent overloading
  • Double spring design for controlled and safe descent while releasing pressure from the cylinder
  • Heat Treated Adjustable Extension Screw provides additional and precise height adjustments. Assists in not overextending cylinder to reach designed heights
  • Design to be operated using air or manually with included two-piece lifting/lowering handle
  • Includes 4 ft. swivel end air hose with easy to use handheld push-button air trigger
  • Air trigger includes 1/4 in. NPT fitted air inlet, in-line air filter (extends the life of air motor), and airflow latch- for easier constant airflow while raising of the jack to load
  • Fitted with a heavy-duty constructed chrome-plated air motor designed with wear-resistant parts to ensure longevity and dependability in any lifting application

Additional information

Weight 19.050864 kg
Dimensions 26.67 × 20.637398400000002 × 29.2098984 cm
Manufacturer Model

10381

Lifting Capacity

20 Ton(s)

Lowered Height

10"

Raised Height

20"

Operation Type

Air Hydraulic

Ram Travel

6"

Screw Adjustment

4"

Saddle Width

1-3/4"

Base Thickness

1-1/4"
