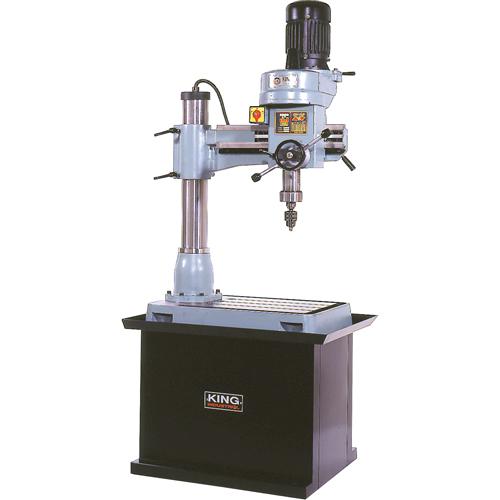

Radial Drilling Machine - 1/2", 5, 21-5/8" W X 19-5/8" L, #3 Morse, 24"L X 34"W X 90"H, (340-3000 RPM)

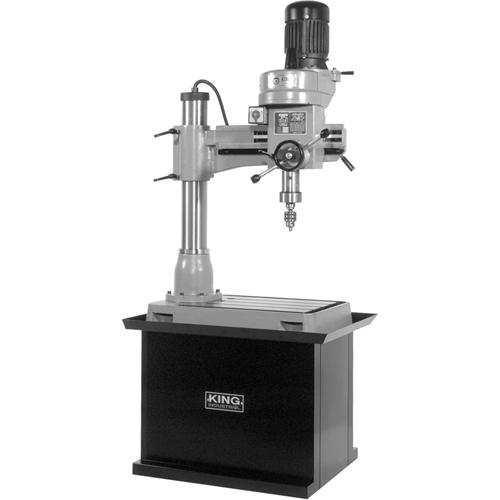

Radial Drilling Machine - 1/2", 5, 21-5/8" W X 19-5/8" L, #3 Morse, 24"L X 34"W X 90"H, (340-3000 RPM) - Image 2

Radial Drilling Machine – 1/2″, 5, 21-5/8″ W X 19-5/8″ L, #3 Morse, 24″L X 34″W X 90″H, (340-3000 RPM)

SKU 010-LWC852 Category Brand:

$7,461.30 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Spindle is equipped withheavy-duty tapered bearings
  • Head swivels 180¦ and iseasily raised and lowered
  • Head travels up to 14"
  • Includes: Forward reverse switch,1/2" chuck with key and stand ; ; Model No. TZ529; Mfg. No. KC-35; Chuck size: 1/2"; Speeds: 5 (340-3000 RPM); Table size: 21 5/8" x 19 5/8"; Spindle Taper: #3 Morse; Motor: 1.5 HP, 11 A, ; single phase, 60 Hz; Voltage: 220 V; Dimensions: 24" L x 34" W x 90" H; Weight: 638 lbs.

Additional information

Weight 289.391696 kg
Dimensions 86.3598984 × 228.6 × 60.96 cm
Manufacturer Model

KC-35
Chuck Size

1/2"
Speeds

5
Table Dimensions

21-5/8" W X 19-5/8" L
Spindle Taper

#3 Morse
Size

24"L X 34"W X 90"H
Speed

(340-3000 RPM)
