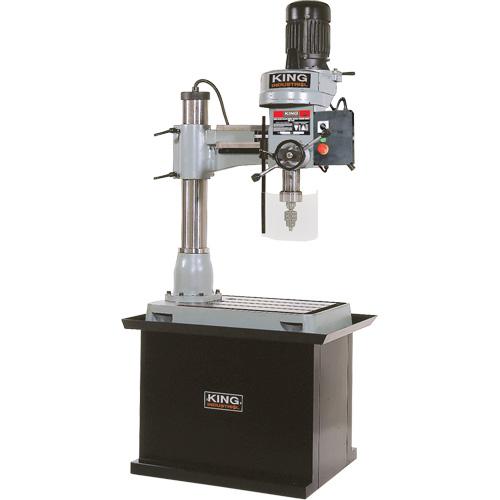

Radial Drilling Machine with Stand - 1/2", 5, 19-5/8" W x 21-5/8" L, #3 Morse, 1-1/4", 21-1/4", 38-1/2", 5-1/4"

Radial Drilling Machine with Stand – 1/2″, 5, 19-5/8″ W x 21-5/8″ L, #3 Morse, 1-1/4″, 21-1/4″, 38-1/2″, 5-1/4″

SKU 010-LWPD310 Category Brand:

$8,069.25 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Safety guard with limit switch protection
  • Magnetic line interruption switch needs a restart after a power failure
  • Head swivels 180° and is easily raised and lowered
  • Head travels up to 14"
  • Spindle is equipped with heavy-duty tapered bearings
  • Powerful 1.5 HP motor
  • Includes: Forward reverse switch, 1/2" chuck with key, 3-1/2" angle vise, Safety guard, Stand

Additional information

Weight 272.1552 kg
Dimensions 60.96 × 60.96 × 182.88 cm
Manufacturer Model

KC-35/SS-35
Chuck Size

1/2"
Speeds

5
Table Dimensions

19-5/8" W x 21-5/8" L
Spindle Taper

#3 Morse
Drilling Capacity

1-1/4"
Max. Distance Spindle Nose to Table

21-1/4"
Swing

38-1/2"
Spindle Stroke

5-1/4"
