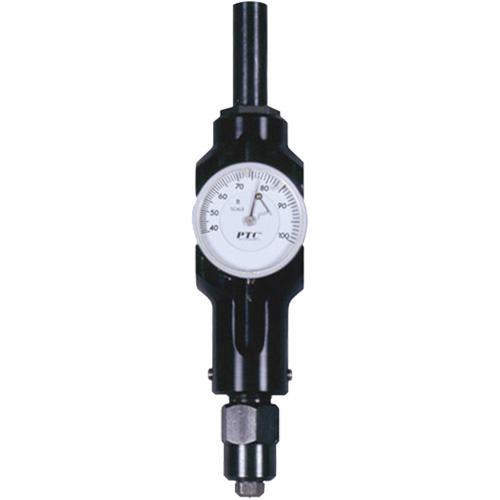

Economical way of grading and checking various metals in equivalent Rockwell B range from 40HRB to 100 HRB
Completely redesigned chassis made from aerospace aluminum houses a high quality displacement gauge
Minimum sample thickness is 0.025" (6.35 mm) for most materials
Shipped with factory-set preload, calibrated and ready to use
Chromoly steel indenter has been polished to a spherical radius of 0.012" and ground to an included angle of 30°
Upper end (the shank) is the gripping area for insertion into a milling machine, drill press, or lathe
Lower end is the load cell that extends up into the body of the hardness tester and houses a centreless ground precision spring which preloads the hardened steel indenter
Direct reading analog dial is accurate to ±1.5 points
The total force required to move the indenter through its full travel of 0.025" (6.35 mm) is 85 lbs. (38.56 kg)
Includes: Rockwell B scale hardness tester, Test blocks (high and low range test blocks), Conversion chart, Carrying case

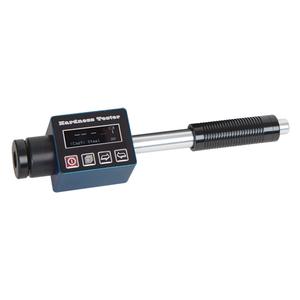

REED R9030 Hardness Tester with ISO Certificate – Analogue, HL, HRC, HRB, HRA, HV, HB, HS, HLD (170 to 96), HRA (59 to 85m), HRB (13 to 100), HRC (20 to 68), HB (19 to 651), HV (80 to 967)
