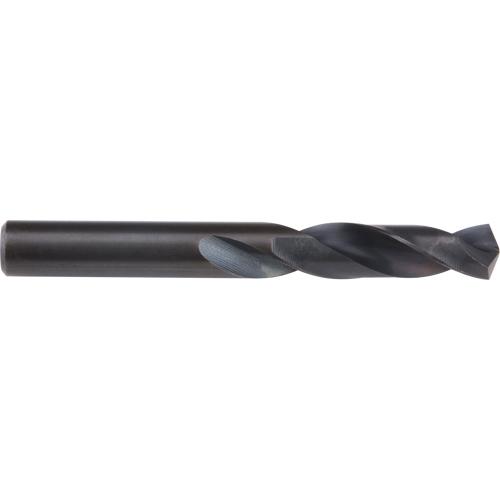

Screw Machine Drill Bit - High Speed Steel, 1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 3/16", 13/64", 7/32", 15/64", 1/4", 5/16", 21/64", 11/32", 3/8", 25/64", 7/16", 15/32", 1/2", 0.0625", 1-5/8", 5/8"

Screw Machine Drill Bit – High Speed Steel, 1/16″, 5/64″, 3/32″, 7/64″, 1/8″, 9/64″, 3/16″, 13/64″, 7/32″, 15/64″, 1/4″, 5/16″, 21/64″, 11/32″, 3/8″, 25/64″, 7/16″, 15/32″, 1/2″, 0.0625″, 1-5/8″, 5/8″

SKU 010-LWFS512 Category Brand:

Price range: $2.89 through $19.73 / Each

Available on backorder

Add to quote

Description

  • Steam oxide finish for increased wear resistance and lubricity
  • Low thrust design and self-centering split point makes for easier penetration
  • Recyclable packaging

Additional information

Weight 0.000453592 kg
Dimensions 4.572 × 0.2538984 × 0.2538984 cm
Manufacturer Model

5999397
Material

High Speed Steel
Drill Size

1/16", 5/64", 3/32", 7/64", 1/8", 9/64", 3/16", 13/64", 7/32", 15/64", 1/4", 5/16", 21/64", 11/32", 3/8", 25/64", 7/16", 15/32", 1/2"
Decimal Drill Size

0.0625"
Overall Length

1-5/8"
Flute Length

5/8"
Point Angle

135°
Manufacturing Standards

ANSI
Depth

2.5XD
Finish

Steam Oxide
Manufacturer Series

R40C
