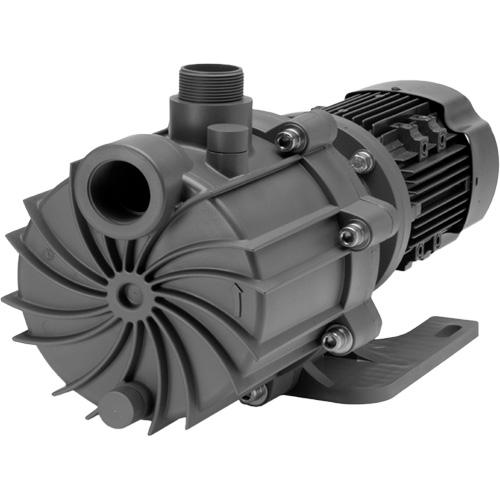

Self-Priming Wet End Magnetic Drive Pump with Carbon Bushing - 1-1/2", 1-1/2", 68', 5 Years, NPT, 4.625", 6-Pole

Self-Priming Wet End Magnetic Drive Pump with Carbon Bushing – 1-1/2″, 1-1/2″, 68′, 5 Years, NPT, 4.625″, 6-Pole

SKU 010-LSXQ649 Category Magnetic Drive Pumps Brand: FTI Finish Thompson Inc.

$6,522.60 / Each

Available on backorder

Available on backorder

Description
Additional information

Description

Self-priming, magnetic drive
Provides up to 25 ft. (7.6 m) lift or equivalent
Primes 15 ft. (4.6 m) in < 2 minutes with maximum diameter impeller
Retains fluid for re-priming when shut off without a check valve
Extended run dry ability (with carbon bushing)
High operating efficiency
PVDF construction
Powerful neodymium magnets
Close-coupled design
Threaded (NPT or BSP), union or flange connections
Back pullout design
Mounts to NEMA and (B5 & B14) IEC motor frames
Easy set measurement free drive
ISO 1940 G2.5 balancing
CE certified
High working pressure up to 80 psi (5.5 bar)
Specific gravity over 1.8

Additional information

Weight	6.8038799999999995 kg
Dimensions	68.58 × 38.1 × 38.1 cm
Manufacturer Model	SP11V-W
Intake Size	1-1/2"
Discharge Port Size	1-1/2"
Suction Head	68'
Manufacturer's Warranty	5 Years
Connection Type	NPT
Impeller Size	4.625"
Magnet Type	6-Pole
