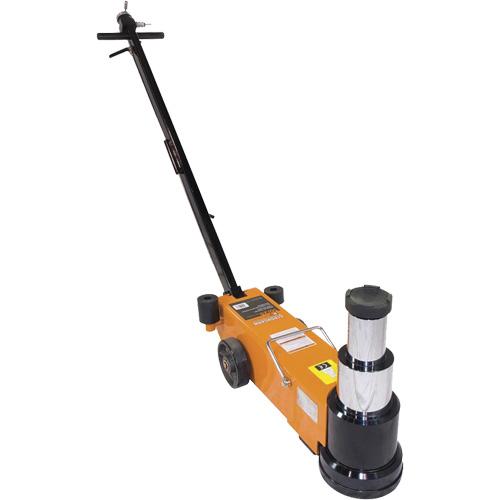

Super Heavy-Duty 2-Stage Air Hydraulic Truck Jack – 50 Ton(s), 4-6/10″, 13″, Air Hydraulic, 116-174 PSI

SKU 010-LXDY108 Category Brand:

$5,035.80 / Each

Available on backorder

Available on backorder

Description

  • Super Heavy Duty, 2 Stage 50 Ton and 25 Ton built tough for the rigors of the heavy duty trucking, agricultural and fleet business
  • The piston head seal design is borrowed from industrial technology providing a superior low and high pressure seal, giving this jack a much better hold under severe load conditions
  • The extra long 138cm (54") handle can be locked in 3 positions for easy positioning of this jack in hard to reach places
  • An integral Descent Metering Valve maintains a controlled and safe lowering of the load
  • Single piece base construction provides superior strength for increased load stability
  • Double polished chromed pistons allow for much tighter tolerances which reduce oil bypassing and reduced ram scoring
  • Air assisted lowering speeds up ram retraction
  • Built-in overload safety valve prevents damage to unit due to excessive load
  • Comes with 2 extensions (75mm & 45mm) and saddle adaptor
  • Units are tested to -25?C and +45?C as well as off centre loading to ensure a long life under even the harshest conditions

Additional information

Weight 68.492392 kg
Dimensions 81.6864 × 30.48 × 28.346400000000003 cm
Manufacturer Model

030475

Lifting Capacity

50 Ton(s)

Lowered Height

4-6/10"

Raised Height

13"

Operation Type

Air Hydraulic

Weight

161 lbs.

Working Air Pressure

116-174 PSI
