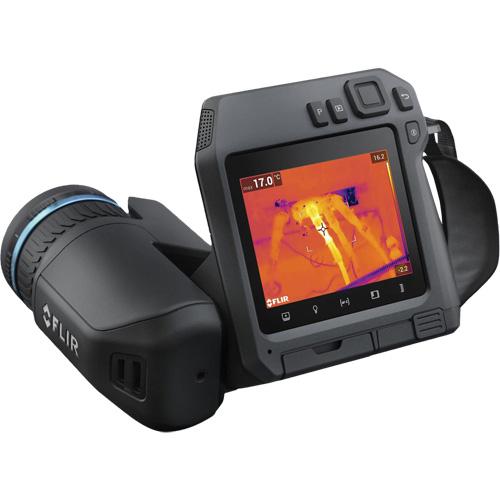

T540-24 Professional Thermal Imaging Camera with 24° Lens – 4″ L x 4″ W, Built-in, 464 x 348 pixels, ‘-20° – 120°C (-4° – 248°F)/0° – 650°C (32° – 1202°F)/300° – 1500°C (572° – 2732°F), (1) Infrared Camera

Description

Analyze images, quickly build reports, and keep customers informed with rapid Wi-Fi uploads, customized work folders, and streamlined reporting features that make your job easier
Camera lamp (left and right sides)
Precise laser-assisted focus ensures you record tack-sharp images, for the most accurate temperature readings
Bright LED work lights improve image clarity in dim areas
Vibrant, 4" (101.6 mm) optically-bonded PCAP touchscreen
Separate autofocus and image recording buttons
Speaker plays back voice annotation
Microphone for voice annotation
Li-ion battery for extended use times
Scratch-resistant Dragontrail™ glass
5 MP digital camera now closer to thermal detector for superior MSX® enhancements
Focus ring
Image archive button
Navigation pad with center push
Back, save, autofocus, and on/off buttons
Light sensor
Attachment point for the neck strap
Laser transmitter and receiver
Change from wide area scanning to telephoto instantly with the FlexView™ dual field-of-view lens
Get industry-leading image clarity from Vision Processing™ through the power of patented MSX®, UltraMax®, and proprietary adaptive filtering

Weight	5.6699 kg
Dimensions	48.2598984 × 17.7798984 × 34.29 cm
Manufacturer Model	79302-0201
Display Size	4" L x 4" W
Display Type	Built-in
Resolution	464 x 348 pixels
Temperature Range	-20° – 120°C (-4° – 248°F)/0° – 650°C (32° – 1202°F)/300° – 1500°C (572° – 2732°F)
Includes	(1) Infrared Camera, (1) 24° Lens, (1) Front Lens Cap, (1) 8 GB SD Card, (1) USB 2.0 A to USB Type-C Cable, (1) USB Type-C to HDMI Cable, (1) USB Type-C to USB Type-C Cable, (1) Set of lanyards, (1) Hard Carrying Case, (2) Batteries, (1) Battery Charger, (1) Power Supplies, (1) Printed Documentation, (1) FLIR Thermal Studio Pro + Route Creator Plugin License Card (Three Months)
Resolution with UltraMax Enhancement	645,888 effective pixels
Digital Zoom	1-6x continuous
Detector Type and Pitch	Uncooled microbolometer, 17 μm
