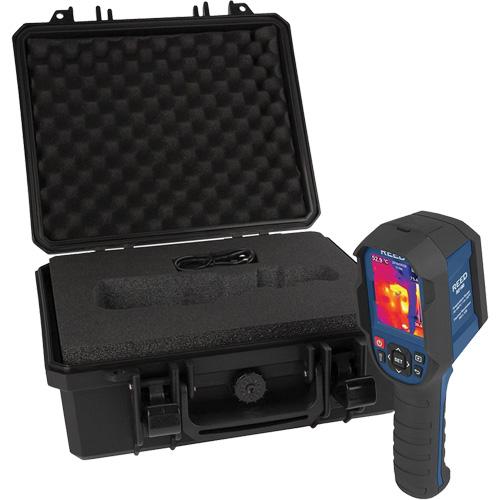

Thermal Imaging Camera Kit – 2.8″, Built-in, 160 x 120 pixels, 50 mK, ‘-10° – 400°C (14° – 752°F), REED R2165 Thermal Imaging Camera, USB Cable, 32GB Micro SD Card, Soft Carrying Case, Power Adapter, REED R8888 Medium Hard Carrying Case

Description

Features a rugged IP65-rated double-molded housing and a 160 x 120 9Hz infrared sensor with 0.05°C thermal sensitivity
Ability to display hot and cold spot temperatures on a 2.8" color LCD
User can choose from 7 different colour palettes
The included software allows a user to view and analyze data, and generate reports or projects in real-time on a PC
2.8" color TFT display
Built-in LED flashlight
Intuitive on-screen measurement tools
3 image modes (Thermal, Visual Image, Thermal Blending)
High and low-temperature spot and alarm indicators
Rechargeable li-ion battery
Tripod mountable for continuous long-term monitoring
View, analyze stored data, and generate reports or projects in real-time
Low battery indication and auto shut-off
Professional grade, injection molded hard plastic case with customizable foam inserts
O-ring creates watertight seal in hard carrying case
Case features pressue equalization valve and double latch & lock system

Weight	3.0844256 kg
Dimensions	34.7981016 × 34.29 × 17.2721016 cm
Manufacturer Model	R2165-KIT
Display Size	2.8"
Display Type	Built-in
Resolution	160 x 120 pixels
Thermal Sensitivity	50 mK
Temperature Range	-10° – 400°C (14° – 752°F)
Includes	REED R2165 Thermal Imaging Camera, USB Cable, 32GB Micro SD Card, Soft Carrying Case, Power Adapter, REED R8888 Medium Hard Carrying Case
Field of View (FOV)	56 x 42°
Optimal Focal Distance	0.82' (0.25m)
Spatial Resolution	(IFOV) 6.1mrad
