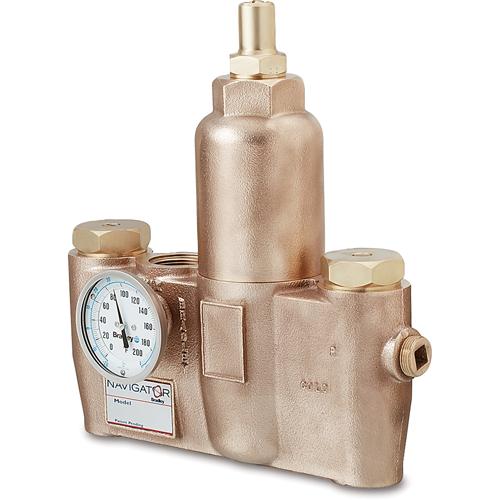

Thermostatic Mixing Valves – 54 GPM, Multiple Showers, 125, 10 Years

Description

Designed to deliver tepid water to injured workers in accordance with ANSI standard Z358.1-2009
Blend hot and cold water to a comfortable flushing temperature
10-year manufacturer's warranty
Check stops on inlets
Adjustable set point within temperature range of 65°F (18°C) to 90°F (32°C)
Accurate temperature control to within ±3°F
Temperature adjustment are vandal resistant
Built-in cold water bypass, assuring cold flow
Easy installation and serviceability
Positive shut-off of hot supply when cold supply is lost
Dirt and lime resistant
Dial thermometer
Factory assembled and tested
Universal mounting capability
Rough bronze finish
SEI certified to ANSI standard Z358.1-2009

Weight	10.886208 kg
Dimensions	34.29 × 9.6517968 × 33.019898399999995 cm
Manufacturer Model	S19-2200
Gallons Per Minute (GPM)	54 GPM
Suitable For	Multiple Showers
Maximum Operating Pressure (PSI)	125
Manufacturer's Warranty	10 Years
