Thickness Gauge with 5-Step Calibration Block - Digital, Ultrasound, <10mm: ±0.1mm, 0.04 to 11.8" (1 to 300mm), 1000 to 9999m/s (0.039 to 0.394in/µs), 3' (91cm)

Thickness Gauge with 5-Step Calibration Block – Digital, Ultrasound, <10mm: ±0.1mm, 0.04 to 11.8" (1 to 300mm), 1000 to 9999m/s (0.039 to 0.394in/µs), 3' (91cm)

SKU 010-LLG694 Category Brand:

$729.75 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Internal memory capable of storing up to 300 readings with user alarm thickness limits and features the 5-step calibration block
  • Measures the thickness of steel, cast iron, aluminum, acrylic resin, red copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron, and nodular cast iron
  • Easy-to-read backlit LCD display
  • User-selectable units of measure (in/mm)
  • Displays sound velocity at the touch of a button
  • User-adjustable High/Low alarms
  • Automatic material calibration
  • Auto shut-off and low battery indicator

Additional information

Weight 0.17236496 kg
Dimensions 13.716000000000001 × 6.4008 × 2.7432 cm
Manufacturer Model

R7920
Display

Digital
Measuring Mode

Ultrasound
Accuracy

<10mm: ±0.1mm
Measuring Range

0.04 to 11.8" (1 to 300mm)
Velocity Range

1000 to 9999m/s (0.039 to 0.394in/µs)
Probe Length

3' (91cm)

Related products

Related products

  • Ultrasonic Thickness Gauge - Digital

    Ultrasonic Thickness Gauge – Digital

    $3,230.85 / Each
    Available on backorder
    Add to cart
  • Thickness Gauge with Calibration Certificate - Digital, Ultrasound, 0.04" - 11.8" (1 mm - 300 mm), Ultrasonic Thickness Gauge; Ultrasonic Couplant Gel; Probe; USB Cable; Carrying Case; Calibration Certificate

    Thickness Gauge with Calibration Certificate – Digital, Ultrasound, 0.04″ – 11.8″ (1 mm – 300 mm), Ultrasonic Thickness Gauge; Ultrasonic Couplant Gel; Probe; USB Cable; Carrying Case; Calibration Certificate

    $960.75 / Each
    Available on backorder
    Add to cart
  • Thickness Gauge Kit - Digital, Ultrasound, 0.03" - 15.7" (0.65 mm - 400.0 mm), 1000 to 9999 m/s (0.039 to 0.394 in/µs), 4 per second for a single point measurement, 5 files, up to 100 values for each file (total of 500 logs)

    Thickness Gauge Kit – Digital, Ultrasound, 0.03″ – 15.7″ (0.65 mm – 400.0 mm), 1000 to 9999 m/s (0.039 to 0.394 in/µs), 4 per second for a single point measurement, 5 files, up to 100 values for each file (total of 500 logs)

    $1,338.75 / Each
    Available on backorder
    Add to cart
  • Ultrasonic Thickness Gauge - Digital, Ultrasound, 0.03" - 15.7" (0.65 mm - 400 mm), 1000 to 9999 m/s (0.039 to 0.394 in/µs), 4 per second for a single point measurement, 5 files, up to 100 values for each file (total of 500 logs)

    Ultrasonic Thickness Gauge – Digital, Ultrasound, 0.03″ – 15.7″ (0.65 mm – 400 mm), 1000 to 9999 m/s (0.039 to 0.394 in/µs), 4 per second for a single point measurement, 5 files, up to 100 values for each file (total of 500 logs)

    $1,149.75 / Each
    1 in stock
    Add to cart

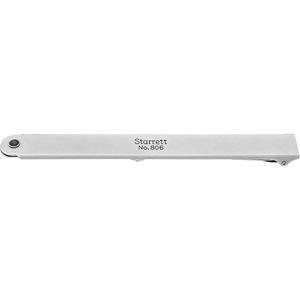

  • Thickness Gauge
