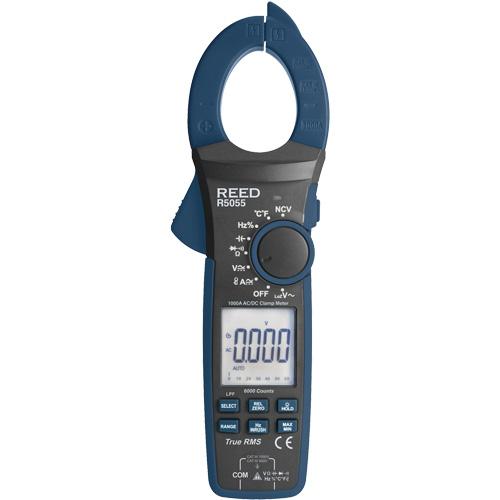

True RMS Digital Clamp Meter with ISO Certificate – AC/DC, AC/DC, 60A, 600A, 1000A, AC – 6V, 60V, 600V, 1000V, DC – 600mV, 6V, 60V, 600V, 1000V, 600Ω, 6, 60, 600kΩ, 6, 60MΩ, 60, 600.0nF, 6, 60, 600μF, 6

SKU 010-LLF092 Category Brand:

$361.20 / Each

Available on backorder

Available on backorder

Description

  • Measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle, and contact temperature
  • Features a 6000 count backlit LCD display with a 31-segment analog bargraph
  • Durable double molded plastic housing
  • Keeps track of min/max readings and includes low pass filter and Low impedance (LoZ) mode
  • Ergonomic design fits in user's hand and can be used while wearing protective gloves
  • Built-in LED flashlight
  • Low battery and over range indicators
  • Built-in non-contact voltage detector with LED indicator
  • True RMS voltage and current for accurate measurements
  • Diode test and continuity check functions
  • Certified to CE and ETL
  • Includes: (1) AC/DC True RMS clamp meter, (1) ISO Certificate with full Data and Uncertainties, (1) Type K thermocouple, (1) Set of test leads, (1) Carrying case, (3) AAA Batteries

Additional information

Weight 0.9135342879999999 kg
Dimensions 31.241999999999997 × 6.6037968 × 14.7318984 cm
Manufacturer Model

R5055-NIST

Voltage Readings

AC/DC

Current Readings

AC/DC

AC/DC Current Range

60A, 600A, 1000A

AC/DC Voltage Range

AC – 6V, 60V, 600V, 1000V, DC – 600mV, 6V, 60V, 600V, 1000V

Resistance Range

600Ω, 6, 60, 600kΩ, 6, 60MΩ

Capacitance Range

60, 600.0nF, 6, 60, 600μF, 6, 60mF
