Ultrasonic Thickness Gauge – Digital, Ultrasound, 0.03″ – 15.7″ (0.65 mm – 400 mm), 1000 to 9999 m/s (0.039 to 0.394 in/µs), 4 per second for a single point measurement, 5 files, up to 100 values for each file (total of 500 logs)

SKU 010-LLE150 Category Thickness Gauges Brand: Reed Instruments

$1,149.75 / Each

1 in stock (can be backordered)

Description

Able to gauge thickness measurement without requiring access to both sides of the test piece
Determines sample thickness by measuring the amount of time it takes for sound to traverse from the transducer through the material to the back end of a part and back
Calculates the data based on the speed of the sound through the tested sample
Capable of performing measurements on a wide range of material including metals, plastic, ceramics, composites, epoxies, glass, and other ultrasonic conductive materials
Zero function and sound velocity calibration
Two-point calibration
Coupling status indicator
Can be easily deployed, does not require laboratory conditions

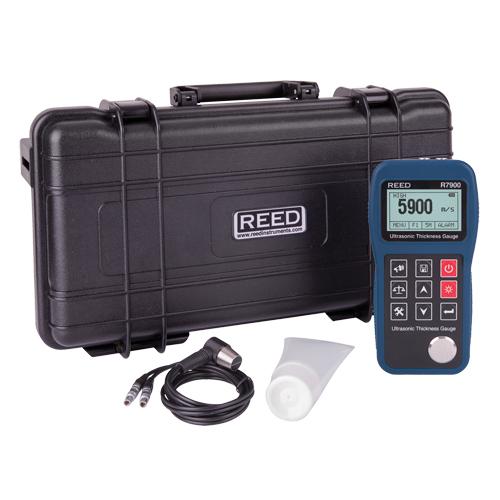

Includes ultrasonic couplant gel, probe, hard carrying case and batteries

Weight	1.232863056 kg
Dimensions	35.5597968 × 8.382000000000001 × 21.081796800000003 cm
Manufacturer Model	R7900
Display	Digital
Measuring Mode	Ultrasound
Thickness Range	0.03" – 15.7" (0.65 mm – 400 mm)
Sound Velocity Range	1000 to 9999 m/s (0.039 to 0.394 in/µs)
Measurement Speed	4 per second for a single point measurement
Memory	5 files, up to 100 values for each file (total of 500 logs)
Power Supply	2 x 1.5V AA batteries
