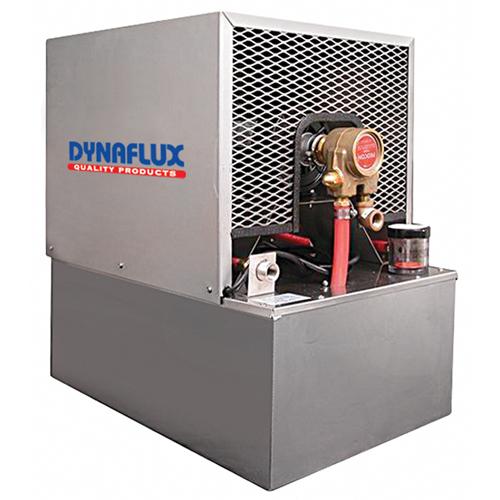

Water Recirculating Cooling System With vane Pump

Description

• Rotary Vane Pump
• Factory set at 50 PSI adjustable to 100 PSI
• 15-gallon reservoir (6 gallon available)
• 4.0 GPM at 50 PSI
• 115 or 230 VAC/single phase – 60 Hz
• 8.2/4.1 amps: 60 Hz
• 30,000 BTU
• 1/2" FPT fittings
• 8' power cord
• Visible water level and water flow sight glass
• Thermal overload
• Dimensions: 23" L x 16" W x 25.5" H
• Net weight: 70 lbs. DESIGNED FOR MIG Guns: Up to 1000 amps TIG Torches: Up to 1000 amps Plasma Welders/Cutters: Up to 300 amps Resistance Welders: Up to 150 KVA Induction Welding: Up to 10 KW
